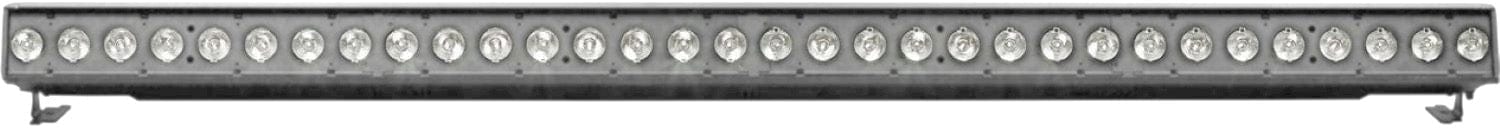

ETC CSLINEARPRL4-5 ColorSource Linear 4 Pearl, XLR, silver

The ETC ColorSource Linear 4 Pearl in silver is a professional LED linear wash fixture that delivers smooth, high‑quality variable white light ideal for a wide range of theatrical, studio, and architectural lighting applications. Built with ETC’s Pearl LED array, it produces a continuous white light spectrum that can be adjusted from warm to cool (2700 K–6500 K), giving you flexible control for different moods and environments. The homogenized optics provide an even wash with no visible pixelation, and a simple user interface with a seven‑segment display makes setup and addressing intuitive. With robust aluminum housing and standard DMX control via 5‑pin XLR (plus optional RJ45), this 2‑meter, four‑cell fixture integrates seamlessly into professional lighting systems while offering reliable performance and consistent output.

Features

• Variable white light range: 2700 K – 6500 K for warm to cool illumination.

• Homogenized optics for smooth, even wash without pixelation.

• Seven‑segment display with 3‑button interface for easy addressing and configuration.

• powerCON® in and thru robust power connections for daisy‑chaining.

• DMX‑512 control via 5‑pin XLR (and RJ45) with RDM support for flexible integration.

• Optically calibrated LED array with droop compensation for consistent brightness and colour.

• Tour‑ready aluminum housing built for professional installations.

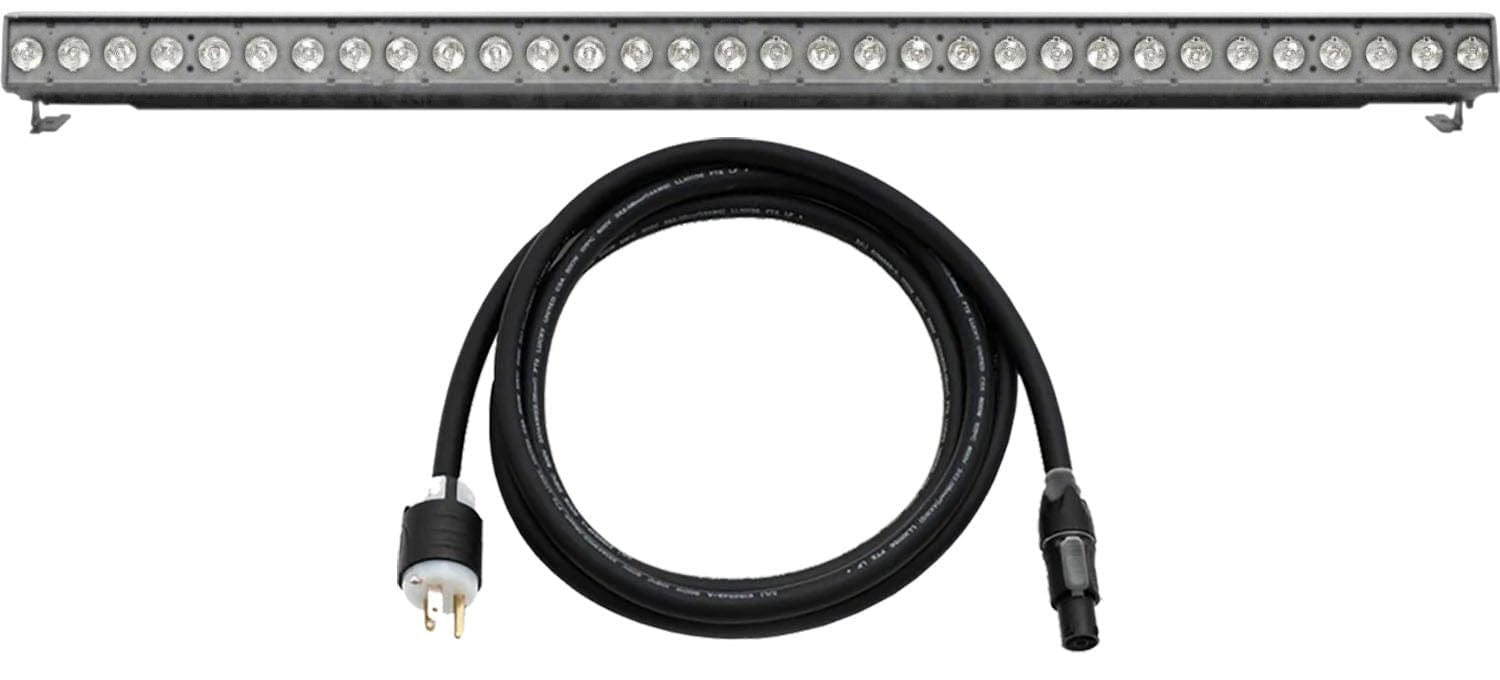

• Includes trunnions and power cable for flexible mounting.

Specifications

Light Source & Output

• Fixture type: Linear 4 (four cells, ~2 m length).

• LEDs: 120 Lumileds LUXEON® Z emitters (40 per cell).

• Color temperature range: 2700 K – 6500 K (variable white).

• Maximum output: approx. 22,596 lumens.

• Efficacy: ~51 lumens per watt.

• LED life (L70): ~36,000 hours (70 % intensity).

Optical

• Homogenized optics for even wash.

• Beam angle: ~15° (standard) — secondary lenses available (sold separately).

• Camera flicker control: 1.2 kHz default / up to 25 kHz via RDM.

Control & Connectivity

• Protocols: DMX‑512, RDM.

• Control connectors: 5‑pin XLR in/thru; RJ45 optional.

• Interface: Seven‑segment display with navigation buttons.

• Onboard presets: 12.

Electrical

• Voltage range: 100–240 VAC, 50/60 Hz.

• Power connections: powerCON in and thru.

• Typical power consumption: ~444 W.

• Inrush: ~67.5 A (first half‑cycle) at 120 V.

• Current draw: ~3.74 A at 120 V.

Physical & Environmental

• Housing: Rugged die‑cast aluminum and molded plastic; silver finish.

• Dimensions: ~109 × 1991 × 153 mm (HxWxD).

• Product weight: ~37.5 lbs (17.01 kg).

• IP rating: IP20 (indoor use).

• Operating temperature: 0°–40 °C (32°–104° F).
