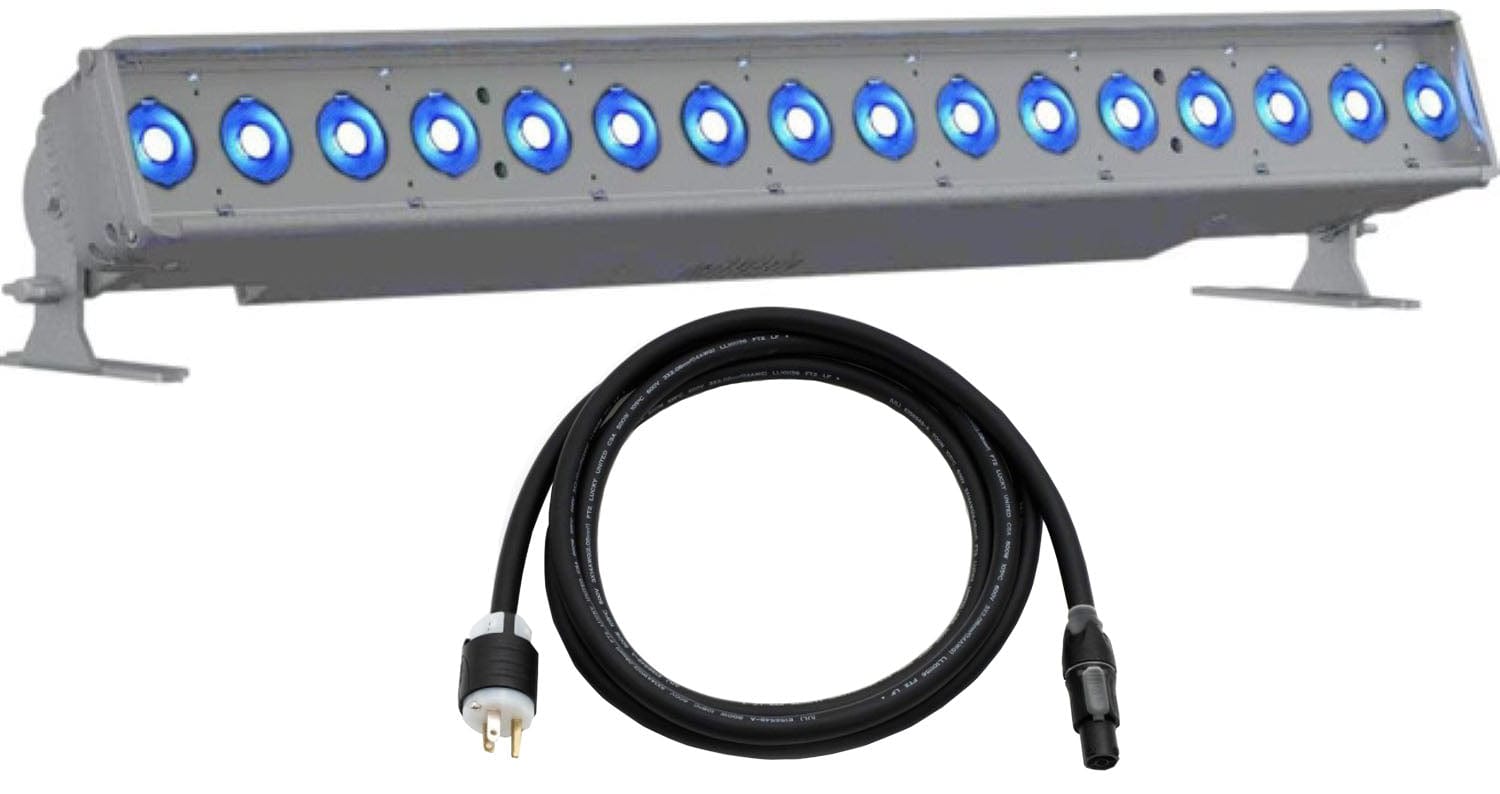

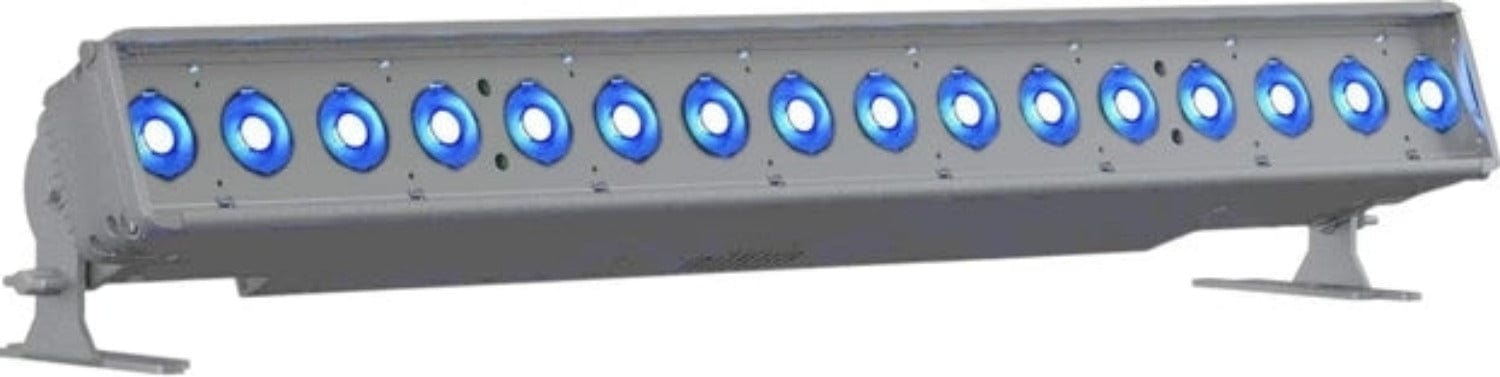

ETC CSLINEARPRL2-5 ColorSource Linear 2 Pearl, XLR, silver

The ETC ColorSource Linear 2 Pearl in silver is a powerful, professional LED linear wash fixture engineered for installations where clean variable white light is essential — such as studios, theatres, architectural environments, and houses of worship. Utilizing ETC’s Pearl LED array, this unit delivers smooth white light with a 2700 K–6500 K colour temperature range, giving you warm to cool white illumination from a single, elegant fixture. Its homogenized optics ensure a seamless, even wash with minimal pixelation, and the robust aluminum housing stands up to the demands of professional use. With a simple interface and flexible control options — including DMX via XLR or RJ45 — the Linear 2 Pearl strikes a great balance of performance, versatility, and ease of integration into any lighting rig.

Features

• Variable white light from 2700 K to 6500 K for warm to cool tones.

• Homogenized optics deliver smooth, consistent wash with no visible LED pixellation.

• Simple seven‑segment display with three‑button interface for quick addressing and setup.

• powerCON® in and thru power connections for daisy‑chaining multiple units.

• DMX‑512 control via 5‑pin XLR (or RJ45) with RDM support.

• LED droop compensation and optical calibration for consistent colour and brightness across fixtures.

• Tour‑ready aluminum housing in silver finish, with trunnions and power cable included.

Specifications

Light Source & Output

• Type: 2‑cell array (Linear 2 ~ 1 m segment).

• LEDs: 80 Lumileds LUXEON® Z LEDs.

• Max lumens: ~11,298 lm.

• Efficacy: ~52 lm/W.

• LED life (L70): ~36,000 hours at 70 % intensity.

Color & Optics

• Colour temperature range: 2700 K–6500 K (warm to cool white).

• Homogenized wash optics for smooth output.

• Beam angle: ~15° standard (optional secondary lenses available).

• Camera flicker control: default 1.2 kHz / up to 25 kHz via RDM.

Control

• Protocols: DMX‑512 and RDM.

• Control connectors: 5‑pin XLR (DMX in/thru); RJ45 (optional).

• Interface: Seven‑segment display w/ local control buttons.

• Onboard presets: 12.

Electrical

• Voltage: 100–240 VAC, 50/60 Hz universal input.

• Power connections: powerCON in and thru.

• Typical power consumption: ~219 W; standby ~3 W.

• Current draw: ~1.83 A @ 120 V.

• Inrush: ~35.6 A first half cycle @ 120 V.

Physical

• Housing: Rugged die‑cast aluminum and plastic; silver finish.

• Included accessories: Trunnions, power cable.

• Dimensions (HxWxD): ~109 × 1000 × 153 mm.

• Weight: ~9.12 kg (20.1 lbs).

• IP Rating: IP20 (indoor use).

• Operating temperature: 0 °C–40 °C (32 °F–104 °F).
