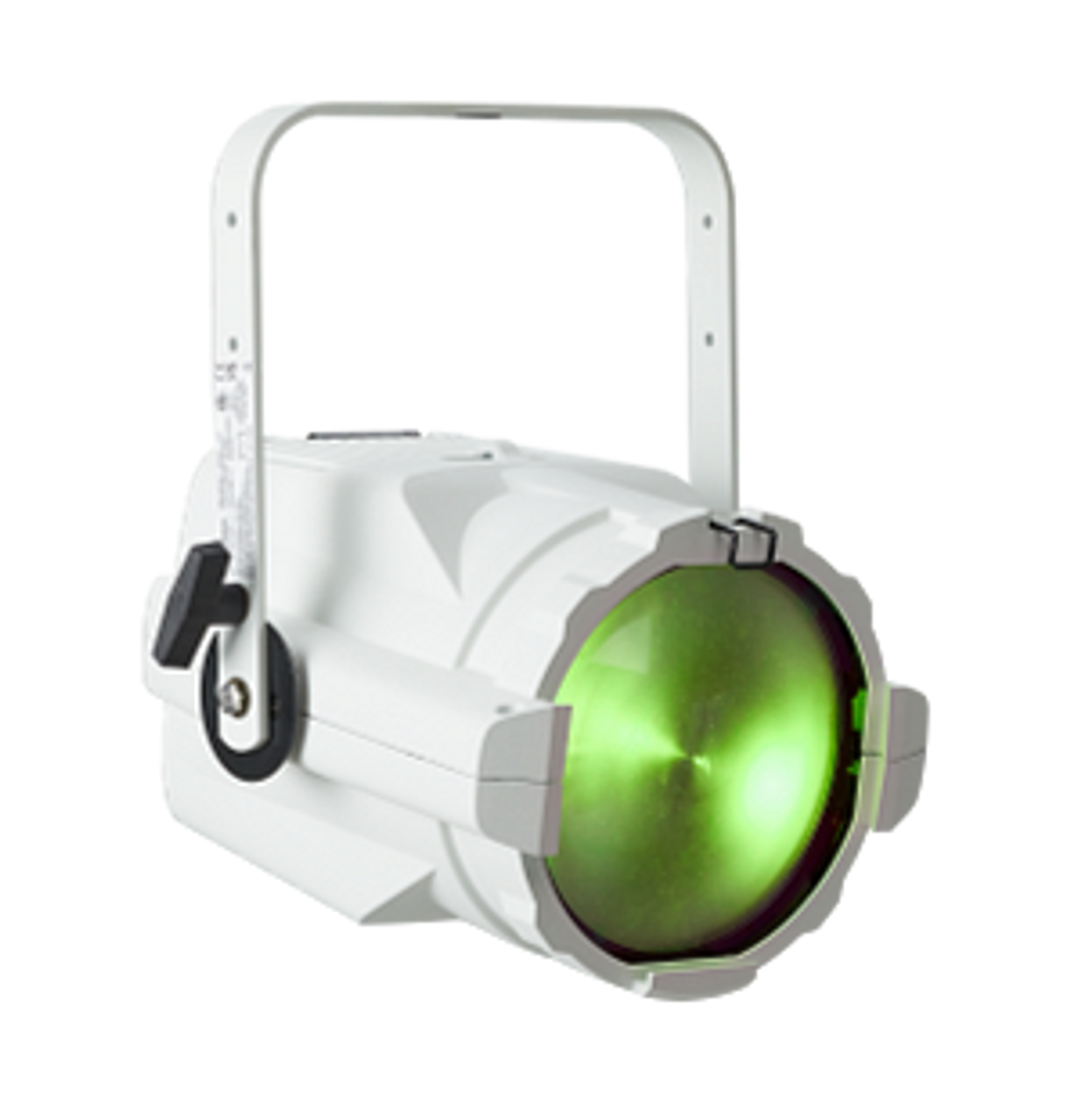

ETC CSFRESVMV-1 ColorSource Fresnel V, ETL, with Multiverse, white

The ETC ColorSource Fresnel V with Multiverse in silver is a versatile, high‑performance LED Fresnel wash fixture that blends modern LED technology with classic Fresnel functionality. Featuring a five‑color LED array for rich color mixing — from soft pastels to bold saturated hues — and a motorized 13°–44° zoom, this fixture gives lighting designers smooth control over beam spread for theatre, stage, studio, architectural installations, houses of worship, and more. Its integrated Multiverse® wireless DMX/RDM control and NFC configuration via mobile device simplify setup and reduce cabling needs, while the rugged aluminum housing and professional‑grade components ensure reliability in demanding environments. With intuitive onboard controls and high‑quality optics, the ColorSource Fresnel V delivers expressive wash lighting with power and precision.

Features

• Five‑color LED array (red, green, blue, indigo, lime) for broad, smooth colour mixing

• Motorized 13°–44° zoom with DMX and local control

• Multiverse® wireless DMX/RDM built‑in for flexible control

• NFC configuration for quick setup from a mobile device

• Simple user interface with seven‑segment display and navigation buttons

• powerCON® TRUE1® TOP power connection

• DMX/RDM in and thru (5‑pin XLR)

• LED droop compensation and optical calibration for consistent output

• Tour‑ready aluminum housing in silver finish

Specifications

Light Source & Output

• LEDs: 44 Lumileds LUXEON® C LEDs

• Maximum output: ~5330 lumens

• Efficacy: approx. 36 lumens per watt

• L70 LED lifetime: ~54,000 hours

Color & Optics

• Color system: Red, Green, Blue, Indigo, Lime

• Motorized zoom range: 13°–44°

• Aperture: ~190 mm (7.48 in)

• Camera flicker control: 5,000 Hz default / 25,000 Hz via RDM

Control & Connectivity

• Protocols: DMX‑512, RDM, City Theatrical Multiverse, NFC

• Control inputs: 5‑pin XLR (DMX in/thru)

• Wireless: Multiverse DMX/RDM + NFC

• Interface: Seven‑segment display with three‑button navigation

Electrical

• Voltage: 100–240 VAC, 50/60 Hz

• Power consumption: approx. 147 W typical

• Power connection: powerCON TRUE1® TOP

Physical

• Housing: Tour‑ready cast and extruded aluminum, silver finish

• Mounting: Yoke included

• IP rating: IP20 (indoor)

• Weight: approx. 6.24 kg (13.75 lb)

Environmental

• Operating temperature: 0°C–40°C (32°F–104°F)

• Fan‑assisted cooling system

Compliance & Warranty

• cETLus, UL1598, CSA C22.2, CE & UKCA certified

• Typical 5‑year fixture warranty
