ETC CSCYC-5 ColorSource CYC 120V with XLR, silver

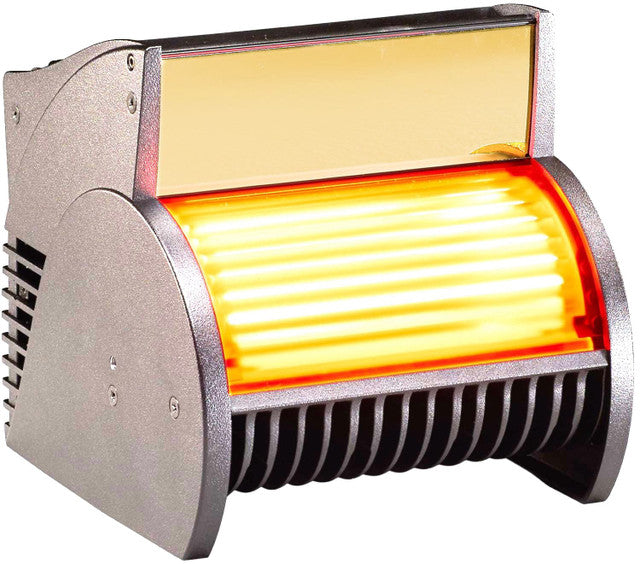

The ETC ColorSource CYC (model CSCYC‑5) is a dedicated LED cyclorama wash light designed to deliver smooth, vibrant wash lighting for backdrops, walls, and stage cycloramas without the complexity of traditional fixtures. Its compact fan‑free design houses a unique five‑color RGBI‑L LED array that produces a rich spectrum of colours with high brightness and excellent blending straight out of the box — no external gels required. A simple user interface with onboard presets and sequences makes setup and control intuitive, while robust construction and efficient power usage ensure dependable performance in theatres, studios, houses of worship, and event venues. The unit provides 120 V power and DMX control via a 5‑pin XLR connector, making it easy to integrate into standard lighting systems. ([turn0search3][turn0search1])

Features

• All‑LED RGBI‑L output with red, green, blue, indigo, and lime for rich, saturated colours and smooth washes.

• Fanless operation for quiet performance and increased reliability.

• Built‑in standalone presets and sequences that work without a controller.

• Simple user interface with 7‑segment address display for quick setup.

• DMX‑512 control via 5‑pin XLR for seamless integration with standard lighting systems.

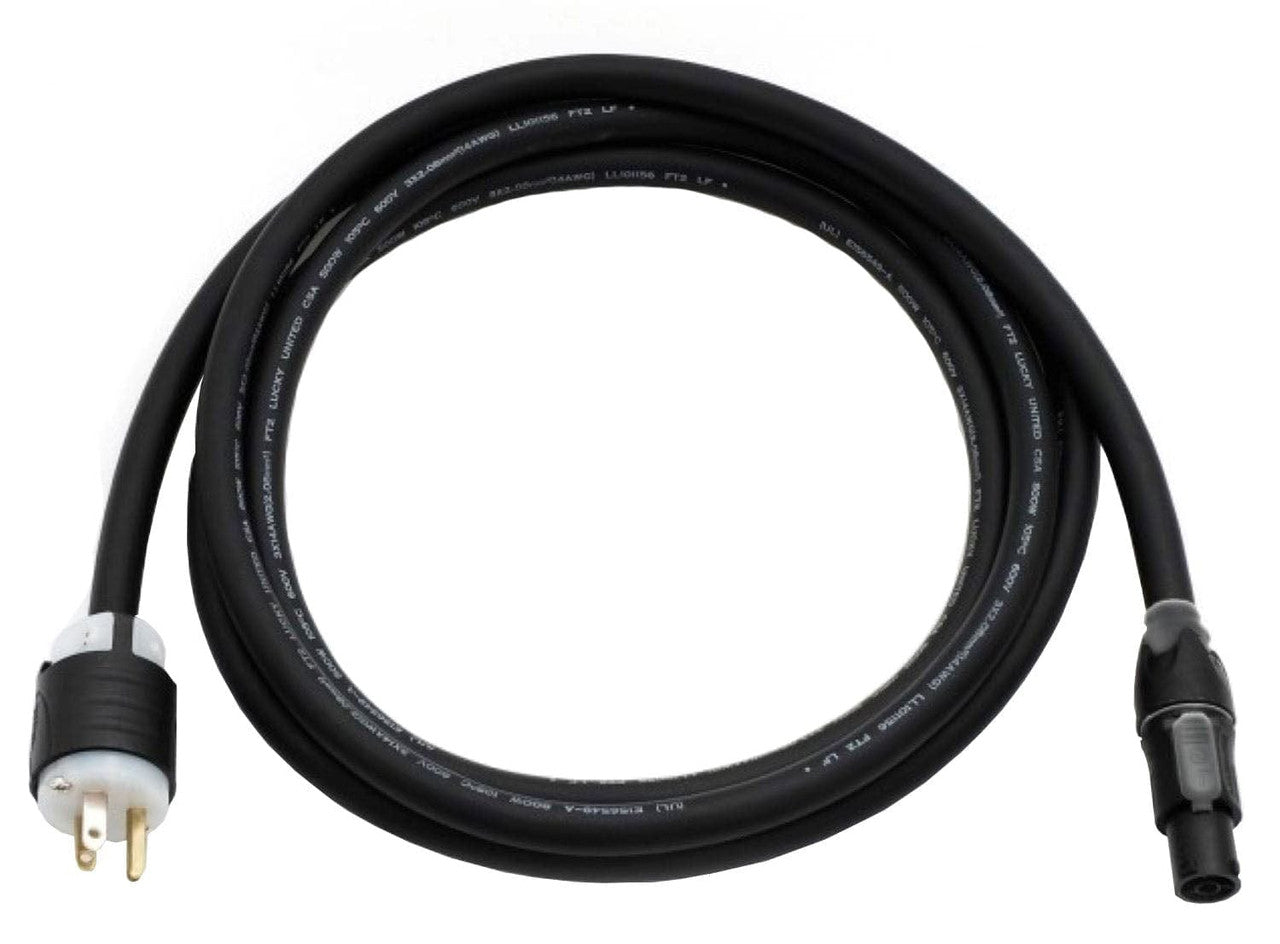

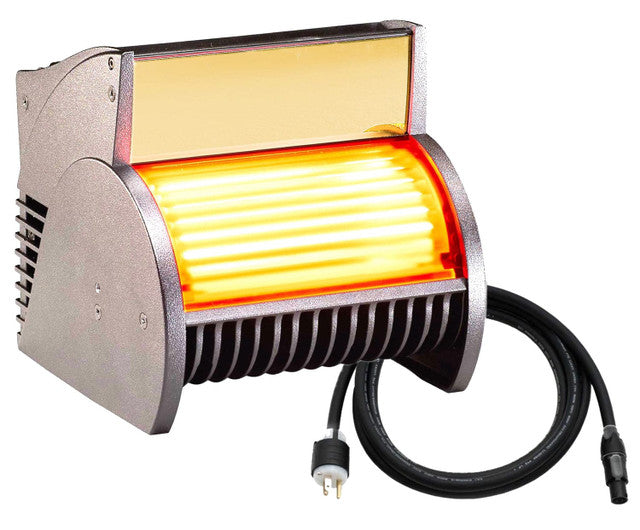

• Includes hanging yoke and power cable for flexible mounting options.

• Compact, lightweight housing ideal for floor placement or rigging.

Specifications

Light Source & Output

• LEDs: 42 Lumileds LUXEON® C LEDs (RGBI‑L array).

• Maximum output: ~4,117 lumens.

• Efficacy: ~31 lumens per watt.

• L70 lifetime: ~50,000 hours (estimate).

Color & Optical

• Colours used: Red, green, blue, indigo and lime.

• Calibrated LED array with no red shift.

• Asymmetrical wash pattern; no beam angle or pattern projection.

• Built‑in accessory for spill control.

Control & Connectivity

• Control inputs: DMX‑512 via 5‑pin XLR or RJ45 (optional).

• Modes: IRGBS (5), Direct IRGBILS (7), I (1), RGB (3).

• RDM support: Yes.

• Onboard presets: 12.

• Onboard sequences: 5.

Electrical

• Voltage: 100–240 VAC, 50/60 Hz.

• Input method: powerCON in and thru.

• Typical power consumption: 133 W (1.4 W standby).

• Current draw: ~1.11 A at 120 V.

Physical

• Housing: Die‑cast aluminum and plastic.

• Color: Silver finish (‑5).

• Mounting options: Hanging yoke and floor use.

• IP rating: IP20 (indoor use).

• Weight: ~10.3 lbs (4.67 kg).

Thermal & Environmental

• Operating temperature: 0 °C–40 °C (32 °F–104 °F).

• Fan: None — convection cooled.

• Droop compensation: Yes.
