ETC CSCYC-1 ColorSource CYC 120V with XLR, white
ETC CSCYC-1 ColorSource CYC 120V with XLR, white
ETC CSCYC-1 ColorSource CYC 120V with XLR, white
Click to open expanded view

ETC CSCYC-1 ColorSource CYC 120V with XLR, white

SKU CSCYC-1
Barcode 7415A1000-1
Sale price
$1,840
Regular price
$2,300
You save
20%
ETC CSCYC-1 ColorSource CYC 120V with XLR, white

ETC CSCYC-1 ColorSource CYC 120V with XLR, white

$1,840
$2,300

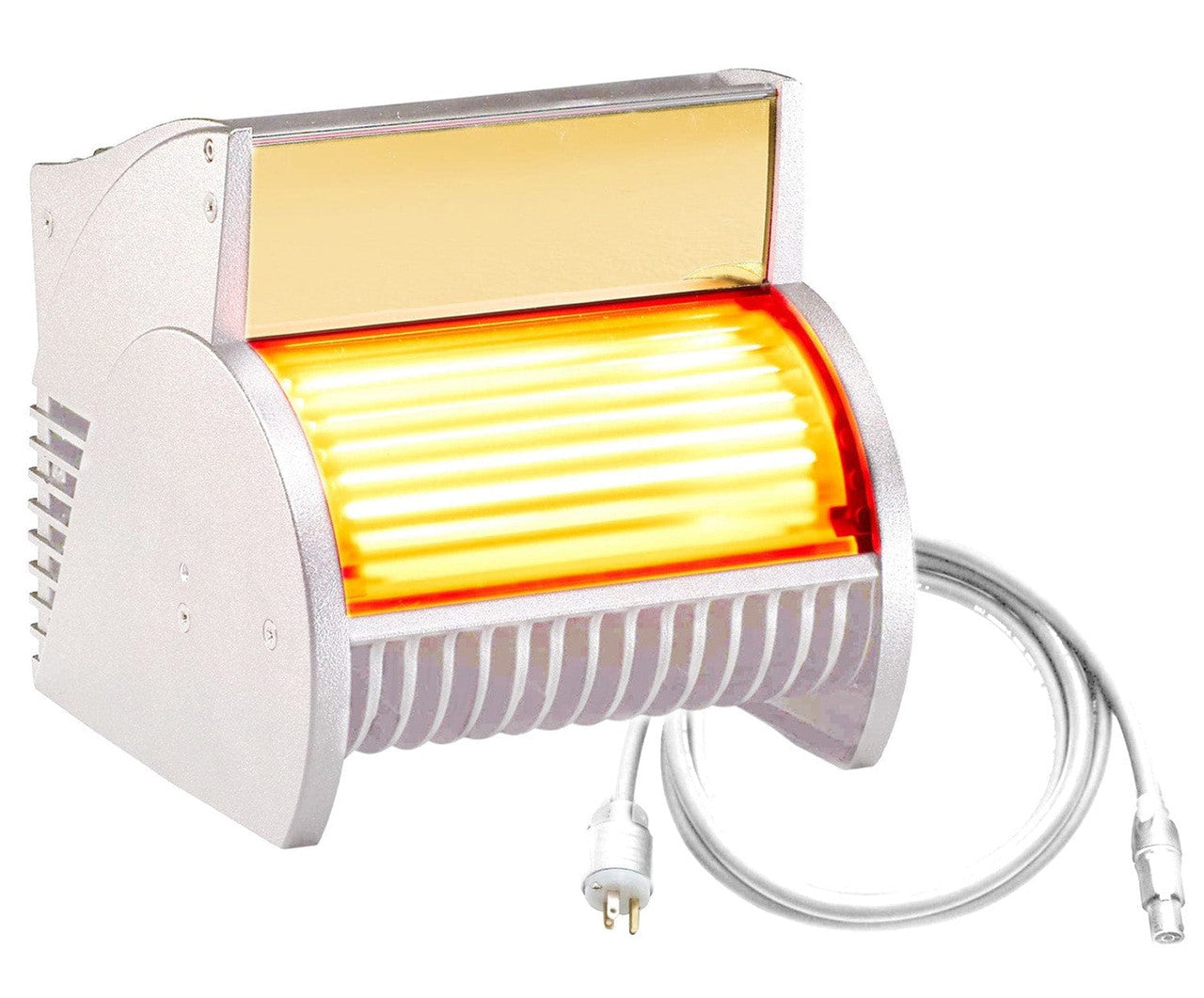

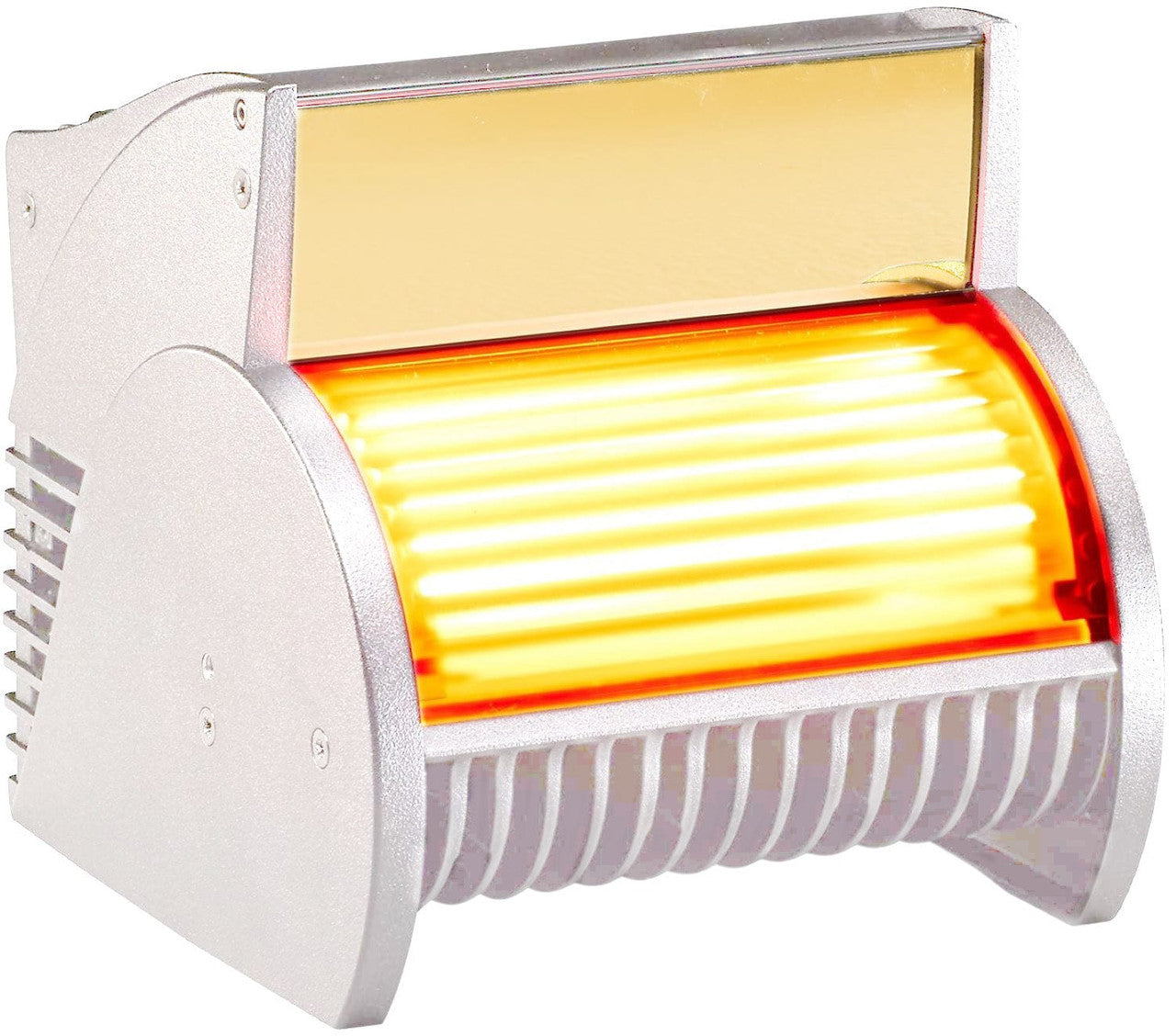

The ETC ColorSource CYC (model CSCYC‑1) in white is a dedicated, high‑quality LED cyclorama wash light designed to create smooth, vibrant washes of colour across backdrops, walls, and stage cyc surfaces with minimal setup. Its compact, fan‑free design incorporates a unique five‑colour RGBI‑L LED array — red, green, blue, indigo, and lime — delivering a broad palette of rich colours and smooth blends straight out of the box. With simple DMX control via XLR and onboard presets/sequences, this fixture is easy to integrate into standard lighting systems while providing reliable performance for theatre, event, and studio environments. The unit includes a hanging yoke and power cable for flexible mounting options and is optimized for quiet, efficient operation.

Features

  • All‑LED five‑colour RGBI‑L array for rich, smooth washes without external gels.

  • Fanless operation for silent use in sound‑sensitive environments.

  • Standalone presets and sequences for simple operation without a controller.

  • DMX‑512 control via 5‑pin XLR or RJ45 (optional) with RDM support.

  • Simple UI with seven‑segment address display for quick setup.

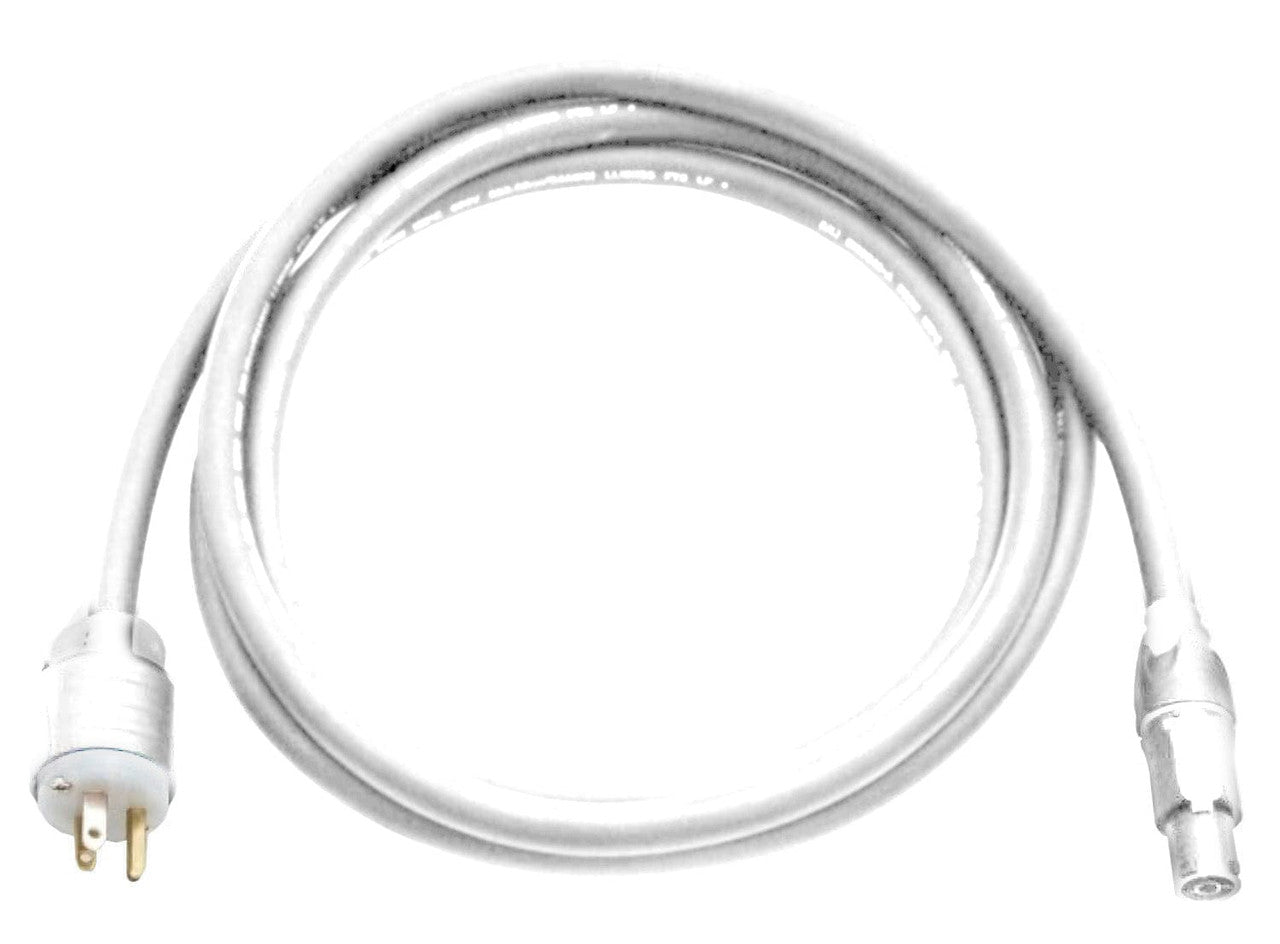

  • Includes hanging yoke and power cable for flexible use.

  • Compact design ideal for floor or hanging installation.

Specifications

Light Source & Output

  • LEDs: 42 Lumileds LUXEON® C LEDs (RGBI‑L array).

  • Maximum output: ~4,117 lumens.

  • Efficacy: ~31 lumens per watt.

  • L70 LED lifespan: ~50,000 hours (estimate).

Color & Optics

  • Colour mix: Red, Green, Blue, Indigo, Lime.

  • Calibrated array with no red shift.

  • Asymmetrical wash optics — no specific beam angle.

  • Built‑in spill control accessory.

Control & Connectivity

  • Protocols: DMX‑512 with RDM support.

  • Control inputs: 5‑pin XLR (DMX) / RJ45 optional.

  • UI: Seven‑segment address display with local level control.

  • Onboard presets: 12.

  • Onboard sequences: 5.

Electrical

  • Voltage: 100–240 VAC, 50/60 Hz.

  • Power connection: powerCON in and thru.

  • Typical power consumption: ~133 W; standby ~1.4 W.

  • Inrush: 39 A (first half‑cycle) at 120 V.

  • Current draw: 1.11 A at 120 V.

Physical & Environmental

  • Mounting options: Hanging yoke and floor.

  • Housing: Die‑cast aluminum and plastic.

  • IP rating: IP‑20 (indoor use).

  • Weight: 10.3 lbs (4.67 kg).

  • Operating temperature: 0°–40 °C (32°–104 °F).
