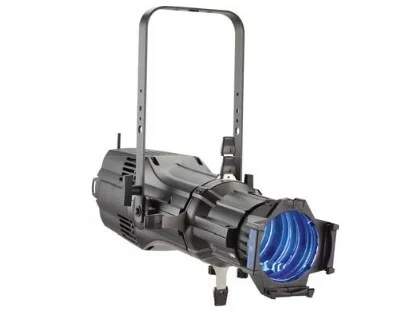

ETC ColorSource Spot VXT - White IP65 rated LED luminaire

The ETC ColorSource Spot VXT – White is a professional IP65-rated LED luminaire engineered for both indoor and outdoor environments. Designed by ETC’s lighting experts, this powerful fixture delivers exceptional brightness, vivid color mixing, and unmatched durability at an affordable price point. Featuring a unique five-color LED array (red, green, blue, indigo, and lime), the Spot VXT produces everything from subtle pastels to bold saturated hues with precision.

With wireless configuration via the Set Light mobile app and NFC, as well as compatibility with existing Source Four lens tubes and accessories, this fixture combines versatility, cutting-edge performance, and rugged reliability for professionals who demand more from their lighting tools.

Applications

• Outdoor theatres and live performance venues

• Houses of worship

• Universities and schools

• Architectural and facade lighting

• Exhibition centers and museums

• Clubs, retail spaces, and cafetoriums

Includes

• Hanging yoke

• 1.5 m power cable

• Soft-focus diffuser in an A-size gobo holder

Features

• Advanced five-color array: red, green, blue, indigo, and lime

• IP65-rated housing for indoor/outdoor use

• powerCON® TRUE1® TOP connector for secure power input/output

• DMX/RDM (5-pin XLR) with Multiverse wireless DMX/RDM

• NFC configuration via the free Set Light mobile app

• Optically calibrated with LED droop compensation

• Compatible with Source Four lens tubes and accessories

• Convertible into a Fresnel or CYC light with optional adapters

• Tour-ready aluminum housing for durability

Specifications

Source

• LEDs: 60 Lumileds LUXEON® C and Rebel LEDs

• Max lumens: 9,498

• Efficiency: 48 lumens per watt

• L70 rating: 54,000 hours

Color

• Array: Red, green, blue, indigo, lime

• Color temperature: Full mixing range

• Calibrated output: Yes

Optical

• Beam angles: 5–90° (swappable lens tubes)

• Gate size: 80 mm

• Pattern size: A or B

Control

• Input: 5-pin XLR (IP-rated), Multiverse wireless, NFC

• Protocols: DMX-512, RDM, Multiverse, NFC

• Presets: 12 onboard

• Sequences: 5 onboard

• Flicker control: 5,000 Hz (default) / 25,000 Hz (RDM selectable)

Electrical

• Voltage: 100–240 VAC, 50/60 Hz

• Typical wattage: 194–199 W

• Standby: 2 W

• Fixtures per 20 A circuit: 8 (typical)

Thermal & Physical

• Operating temp: -20° to 40° C

• Cooling: Controllable fan with droop compensation

• Housing: Die-cast all-metal, IP65 rated

• Weight: 10.89 kg (24 lb) without lens

• Finish: Black (white, silver, and custom colors available)

Compliance & Warranty

• Certifications: UL, CSA, CE, UKCA, RCM, CCC

• Fixture warranty: 5 years

• LED array warranty: 10 years
