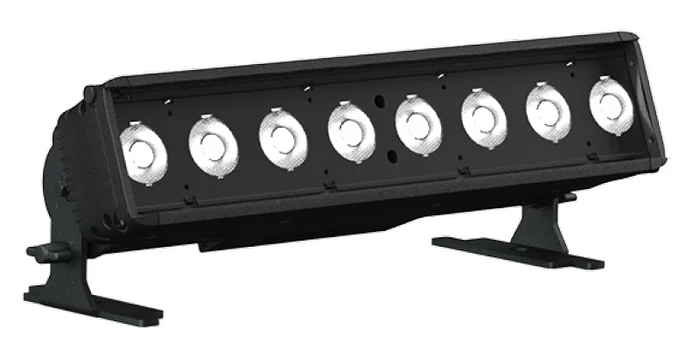

ETC ColorSource Linear Pearl 1 Variable White LED Linear Fixture, 1/2m

The ETC ColorSource® Linear Pearl 1 is a compact 1/2-meter variable white LED wash luminaire designed for installations that demand high-quality white light. Using a blend of warm and cool white LEDs, it offers adjustable color temperatures from 2700K to 6500K, ensuring precise control for studios, houses of worship, and architectural spaces. With smooth dimming, flicker-free performance, and rugged construction, the Linear Pearl 1 delivers professional-grade lighting in a versatile, portable design.

Applications

• Broadcast and studio lighting

• Houses of worship

• Architectural and ambient installations

• Theatrical and stage lighting requiring flexible white-light control

Features

• 0.5m in length with one cell of control

• Variable white light from 2700K to 6500K

• Bright output up to 5,649 lumens

• Homogenized optics for smooth light blending

• Simple user interface with 7-segment display

• powerCON in/thru and DMX in/thru (5-pin XLR or RJ45)

• RDM support for remote configuration

• 12 customizable onboard presets

• Rugged, tour-ready aluminum housing

• Flicker-free operation with 1.2 kHz or 25 kHz camera control options

Specifications

• Model / Part Number: CSLINEARPRL1

• Source: 40 Luxeon® Z LED emitters, 36,000-hour life (at 70% output)

• Output: 5,649 lumens, 50 lm/W efficiency

• Color Temperature Range: 2700K – 6500K, calibrated array

• Beam Angle: 15° (secondary lenses available)

• Control: DMX512/RDM via 5-pin XLR or RJ45; local control presets

• Electrical: 100–240VAC, 50/60Hz; 113W typical, 1.5W standby; Inrush 35A @ 120V

• Physical: 4.29" H x 19.61" W x 6.04" D (109 x 499 x 153 mm), 6.4 lbs (2.9 kg)

• Thermal: Active cooling with variable-speed fan; 32°F to 104°F (0°C to 40°C) operating range

• Noise Level: 24.2 dBa at 1m

• IP Rating: IP20 (indoor use only)
