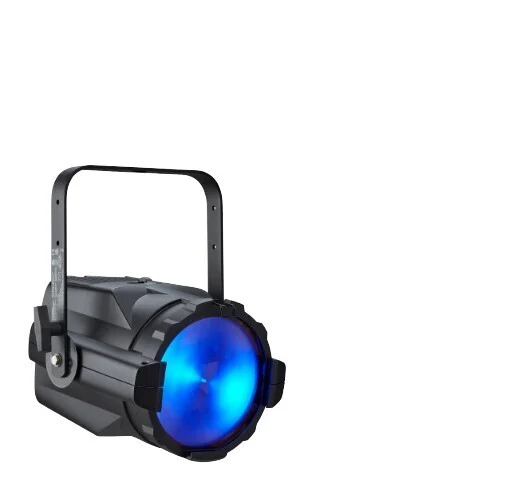

ETC ColorSource Fresnel V MAX Fresnel MAX with Multiverse - Black

SKU CSFRESVMAXMV
Barcode 7417A1012
Sale price
$1,596
Regular price
$1,995
You save
20%
ETC ColorSource Fresnel V MAX Fresnel MAX with Multiverse - Black

ETC ColorSource Fresnel V MAX Fresnel MAX with Multiverse - Black

Sale price
$1,596
Regular price
$1,995

The ColorSource Fresnel V MAX is a powerful LED luminaire designed by industry experts known for high-quality fixtures. Doubling the output of the ColorSource Fresnel V, it delivers exceptional brightness while maintaining rich color and advanced technology at an affordable price. Featuring a five-color array of red, green, blue, indigo, and lime, it produces both soft pastels and deep, saturated hues. Its motorized 13°–44° zoom can be controlled via DMX or adjusted manually from the fixture’s rear. With Multiverse wireless DMX/RDM, NFC configuration, and enhanced brightness, the ColorSource Fresnel V MAX sets a new standard for cost-effective wash lighting.

ETC ColorSource Fresnel V MAX Applications

  • Theatres and performance spaces
  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums

ETC ColorSource Fresnel V MAX Features

  • Five-color array (red, green, blue, indigo, and lime)
  • Motorized 13–44 degree zoom with DMX and local control
  • Simple user interface with seven-segment display
  • powerCON® TRUE1 TOP connector
  • DMX/RDM in and thru (5-pin XLR)
  • Multiverse wireless DMX/RDM
  • NFC (near field communication) configuration
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing

ETC ColorSource Fresnel V MAX Specifications

  • Source:
    • LED details: 60 Lumileds LUXEON® C ES LEDs
    • Max lumens: 10,023
    • Lumens per watt: 48
    • L70 rating (hours to 70% output): 54,000 hours
  • Color:
    • Colors used: Red, Green, Blue, Indigo, Lime
    • Color temperature range: Color mixing
    • Calibrated array: Yes
    • Red shift: No
  • Optical:
    • Beam angle range: 13°–44°
    • Gate size: N/A
    • Aperture size: 190 mm (7.48 in)
    • Pattern projection: No
    • Pattern size: N/A
    • Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)
  • Control:
    • Input method: 5-Pin XLR, Multiverse wireless, and NFC
    • Protocols: DMX-512, RDM, City Theatrical Multiverse, NFC
    • Modes (footprint): 6 modes, see page 6
    • RDM configuration: Yes
    • UI type: Seven-segment display, three-button interface, Focus encoder
    • Local control: Yes
    • Onboard presets: Yes (12)
    • Onboard sequences: Yes (5)
    • Onboard effects: No
    • FixtureLink: Yes
    • Notes: 15-bit virtual dimming engine
  • Wireless:
    • Band: 2.400–2.480 GHz
    • Range: 100 m indoors, 500 m line of sight (subject to conditions)
    • Max receivers:
      • DMX: No limit
      • RDM: Varies by transmitter used
    • Multiverse SHoW Baby®: 585
    • Multiverse Transmitter: 5,000
    • Broadcast power: 100 mW
  • Electrical:
    • Voltage range: 100–240 VAC 50/60 Hz
    • Input method: powerCON TRUE1 TOP power in and thru
    • Inrush (first half-cycle):
      • 120 V: 36 A
      • 240 V: 57 A
    • Fixtures per circuit on standard R20 breaker: 3 (link up to 4 via Power Thru connector)
    • Note: TRUE1 connector rated for
      • 20 A (120 V / 60 Hz) and
      • 16 A (240 V / 50 Hz)
    • Wattage (typical):
      • 120 V: 208 W
      • 230 V: 205 W
    • Current draw:
      • 120 V: 1.75 A
      • 230 V: 0.95 A
  • Thermal:
    • Ambient operating temp: 0°C–40° C (32°F–104° F)
    • Fan (controllable): Yes (yes)
    • Droop compensation: Yes
    • Average dB: TBD dBA
    • BTUs/hour (120 V): 709
  • Physical:
    • Materials: Cast and extruded aluminum
    • Color options: Black, white, silver, or custom color
    • Mounting options: Yoke
    • IP rating: IP20
    • Weight: 6.24 kg (13.75 lb)
    • Included accessories: Yoke, power cable
  • Warranty:
    • Fixture: 5 years
    • LED array: 10 years
  • Regulatory and Compliance:
    • Approved regulatory standards:
    • cETLus Listed
    • Conforms to UL 1598 & 924
    • Complies to CSA C22.2 No. 250.0 and 141
    • CE & UKCA compliant
