Allen & Heath DT22-M 2in x 2out Dante expander, no power supply

Name: Allen & Heath DT22-M 2in x 2out Dante expander, no power supply
Brand: Allen & Heath
SKU: AH-DT-22-M
Price: 449.0 USD
Availability: InStock

SKU SKU:AH-DT-22-M UPC UPC:6938122251281

$449.00 USD

~~$499.00 USD~~ $449.00 USD

Sale Sold out

Product variants

Quantity

DT22

2in / 2out Dante Interface

The compact and portable DT22 enables simple integration of Phoenix / Euroblock equipped hardware into a Dante network. Two inputs and two outputs make it suitable for a range of fixed install scenarios.

2 Line Ins + Outs

Pair of mic/line inputs with local gain control and +48V phantom power, and two line outputs, all on Phoenix/Euroblock connectors.

AES67 Compatible

Interoperability with other AES67 devices on the same network.

DDM Ready

Dante Domain Manager offers security, organization, scalability, and control for Dante networks.

96kHz Dante Support

Choose between standard 48kHz operation and high-fidelity 96kHz operation.

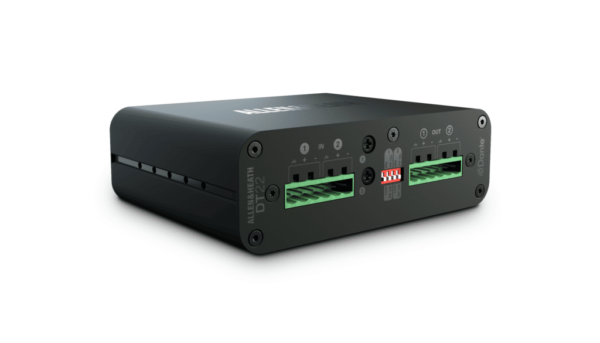

DT22

Easily Add Phoenix / Euroblock Inputs and Outputs to a Dante Network

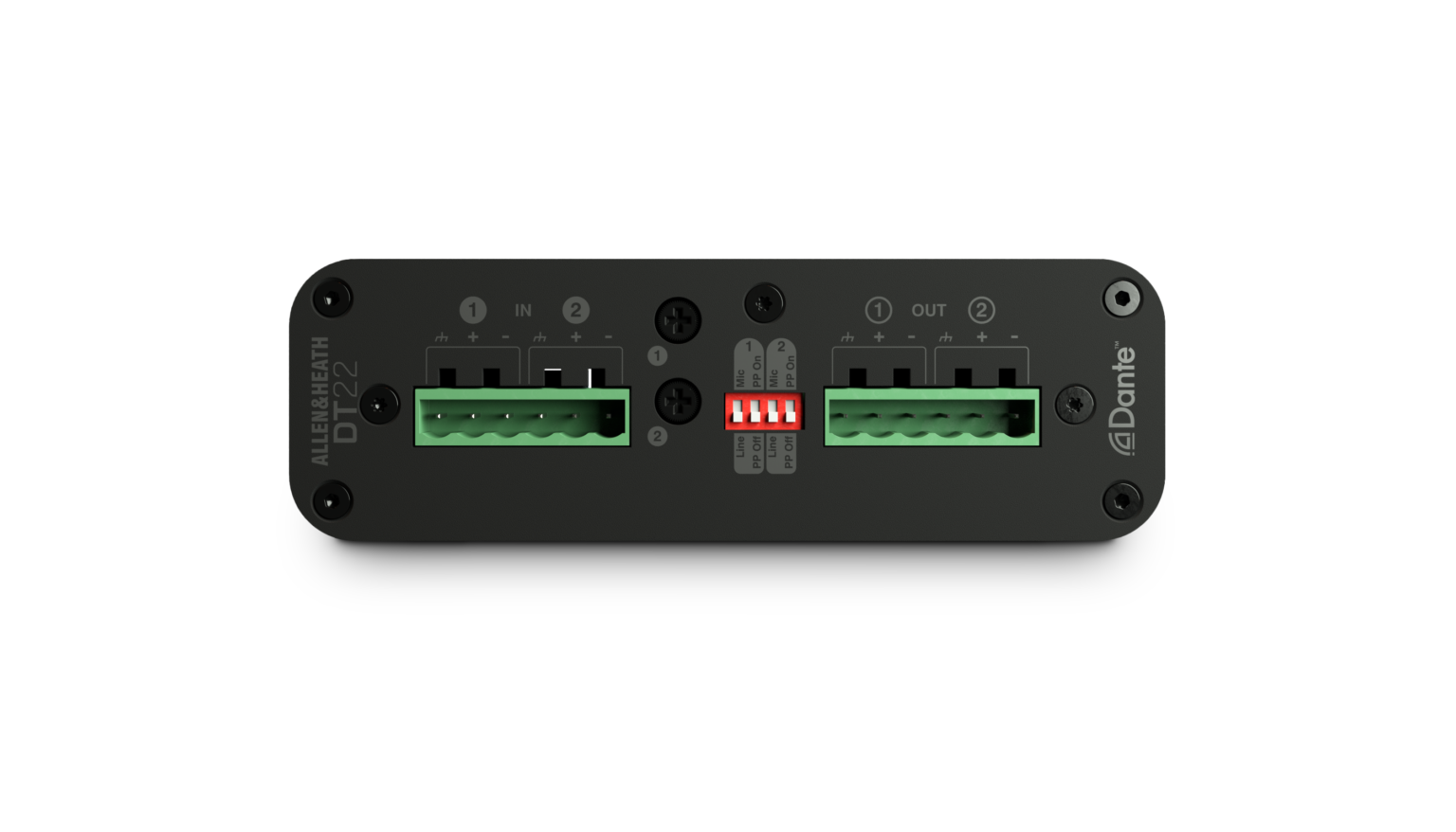

DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get analogue audio in and out of a Dante network.

Install Options

PoE or PSU

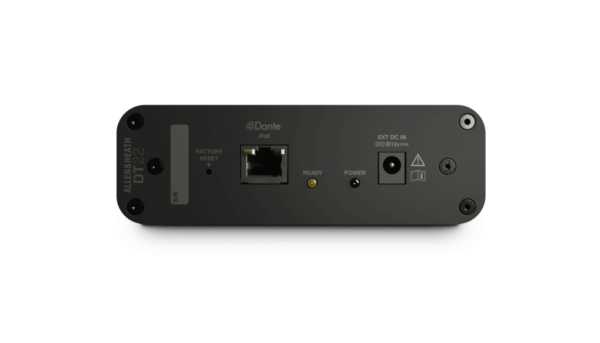

It can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.

Surface Mount

DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, or mounted under a podium for local mic/PC and speaker connection. Surface mount ears are included with the DT22.
