Allen & Heath

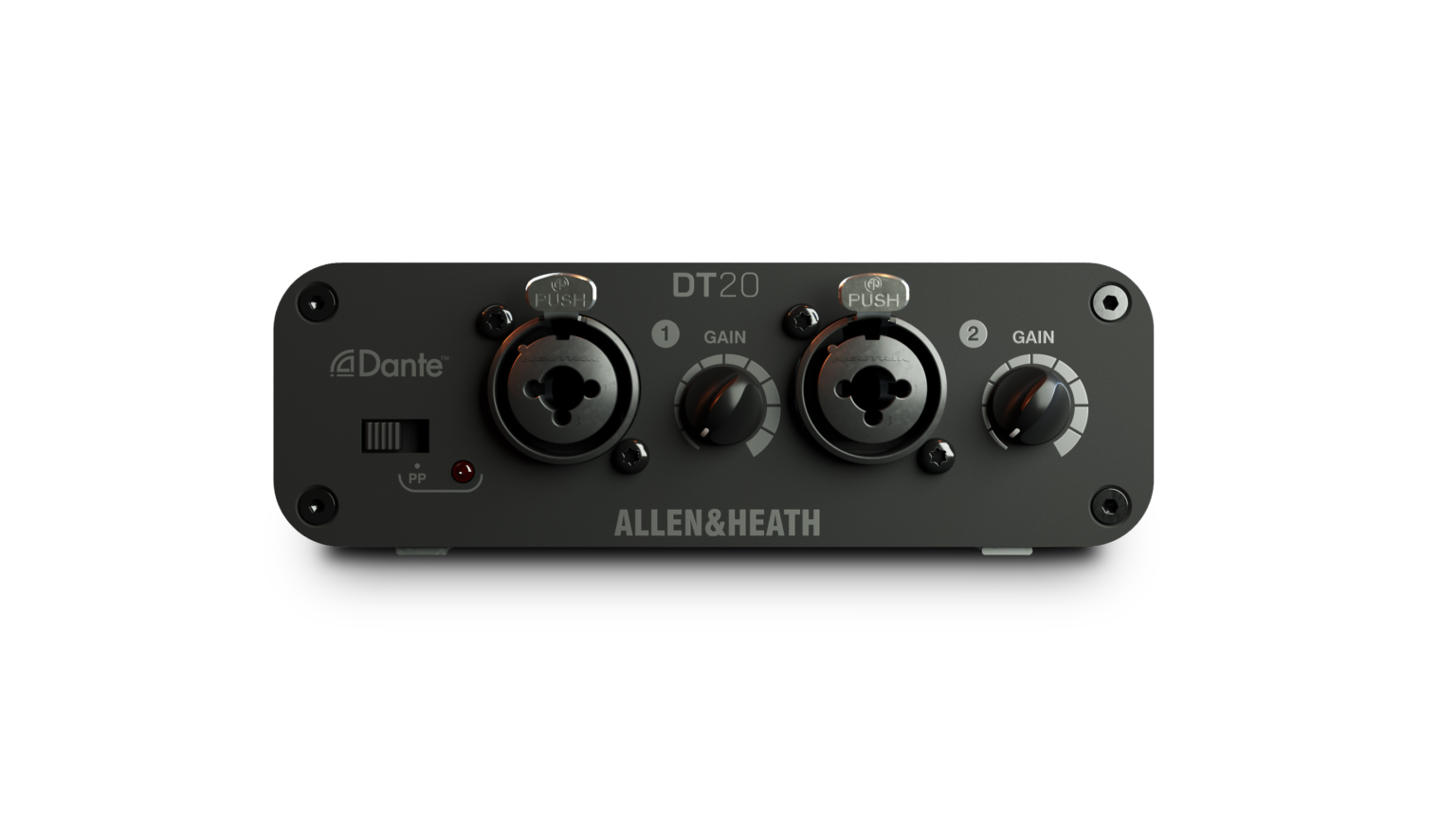

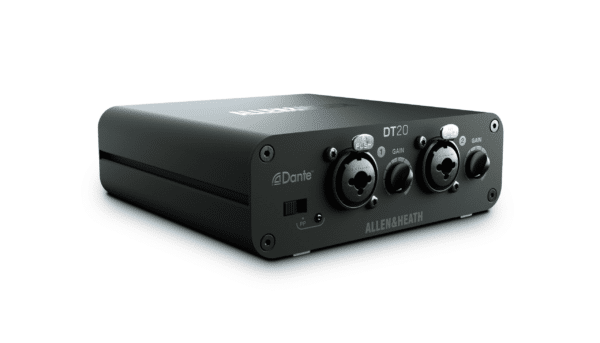

Allen & Heath DT20-X 2 input Dante Interface, with Power Supply

Allen & Heath DT20-X 2 input Dante Interface, with Power Supply

SKUAH-DT-20-X UPC6938122251243

$329.00 USD
$399.00 USD $329.00 USD
Sale Sold out

DT20

2in Dante Interface

DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.

2 Mic/Line Inputs

Pair of combi mic/line inputs with local gain control and +48V phantom power with LED indicator.

AES67 Compatible

Interoperability with other AES67 devices on the same network.

DDM Ready

Dante Domain Manager offers security, organization, scalability, and control for Dante networks.

96kHz Dante Support

Choose between standard 48kHz operation and high-fidelity 96kHz operation.

DT20

Easily Add Line Inputs to a Dante Network

Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.

Install Options

PoE or PSU

The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).

Surface Mount

Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection. The DT20-M version ships with surface mounting ears for visually unobtrusive installation.

Rack Mount Kit

An optional rack mount kit is available for installation of up to two DT units in a 1U 19″ slot onstage or at FOH.
