Allen & Heath
SKU:AH-DT-02-M
UPC:6938122251205
Couldn't load pickup availability

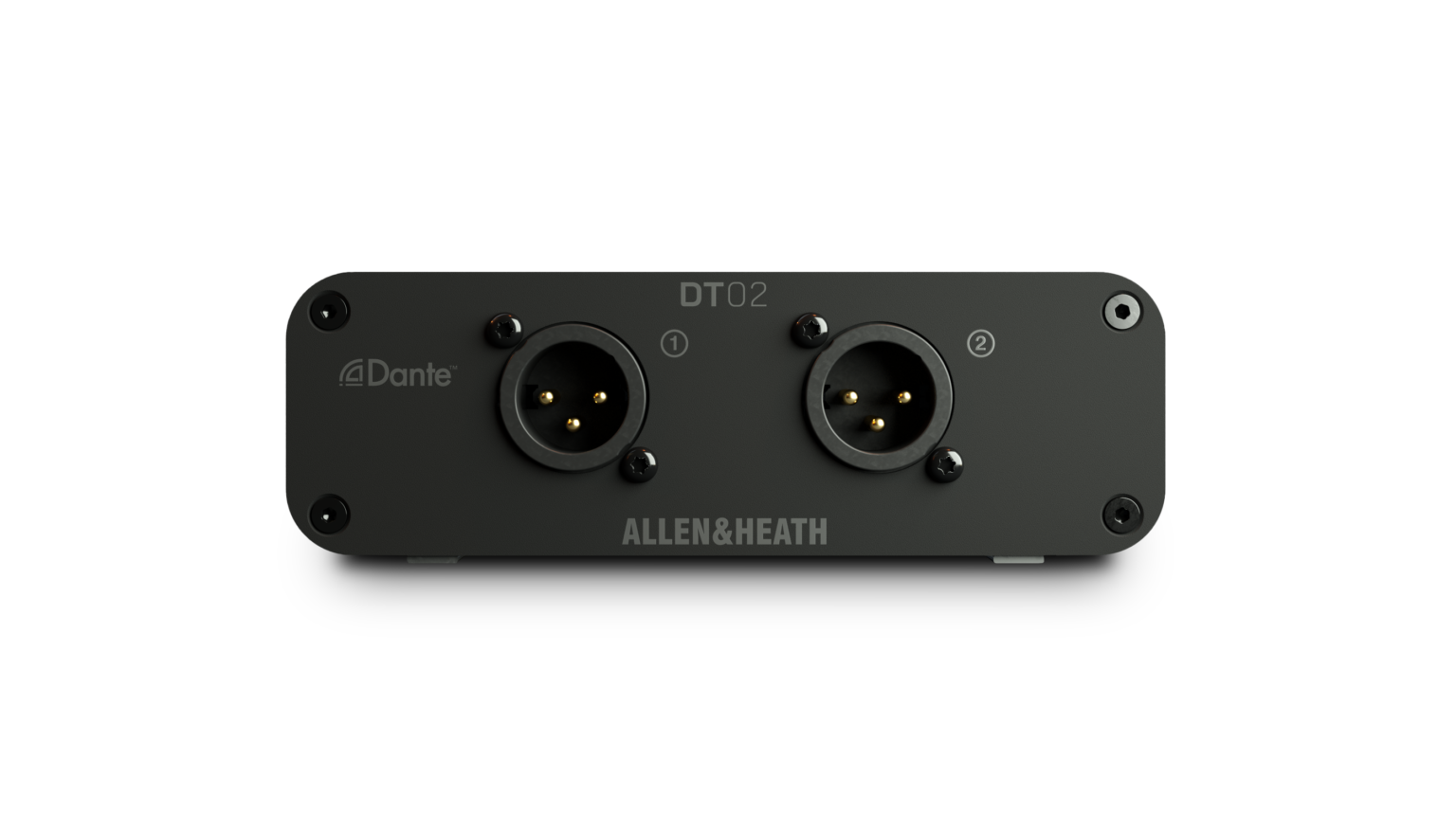

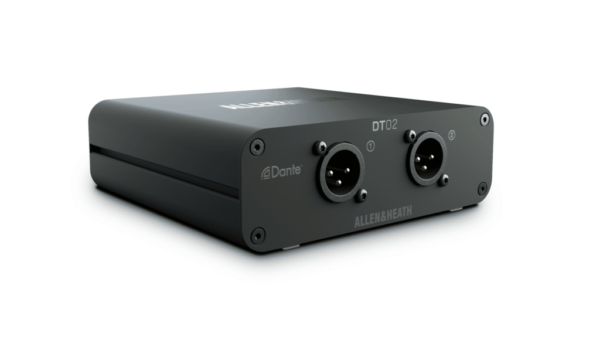

The compact and portable DT02 converts two channels of Dante audio to a pair of XLR line-outputs, enabling simple break-out to analogue equipped hardware for install and live applications.
Balanced, relay protected line outputs on XLR.
Interoperability with other AES67 devices on the same network.
Dante Domain Manager offers security, organization, scalability, and control for Dante networks.
Choose between standard 48kHz operation and high-fidelity 96kHz operation.
Easily Add Line Outputs to a Dante Network
DT02 is a cost-effective, compact 48kHz/96kHz Dante interface enabling 2x XLR outputs wherever you need them on your Dante network. Ideal for a wide variety of fixed installation and AV hire / portable applications, DT02 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as with third party Dante systems.

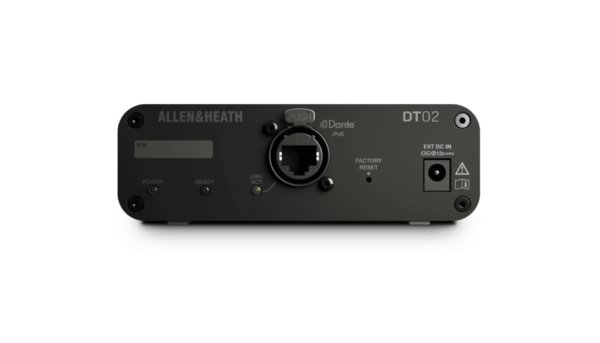

The unit can be PoE powered or powered via a DC 12V supply. Two versions are available, the standard DT02 with power supply and rubber feet, or the DT02-M which includes surface mounting ears (and no power supply).
Thanks to its compact format, DT02 can be easily mounted in the proximity of powered speakers or monitors. The DT02-M version ships with surface mounting ears for visually unobtrusive installation.
An optional rack mount kit is available for installation of up to two DT units in a 1U 19″ slot in the equipment rack.
