Allen & Heath

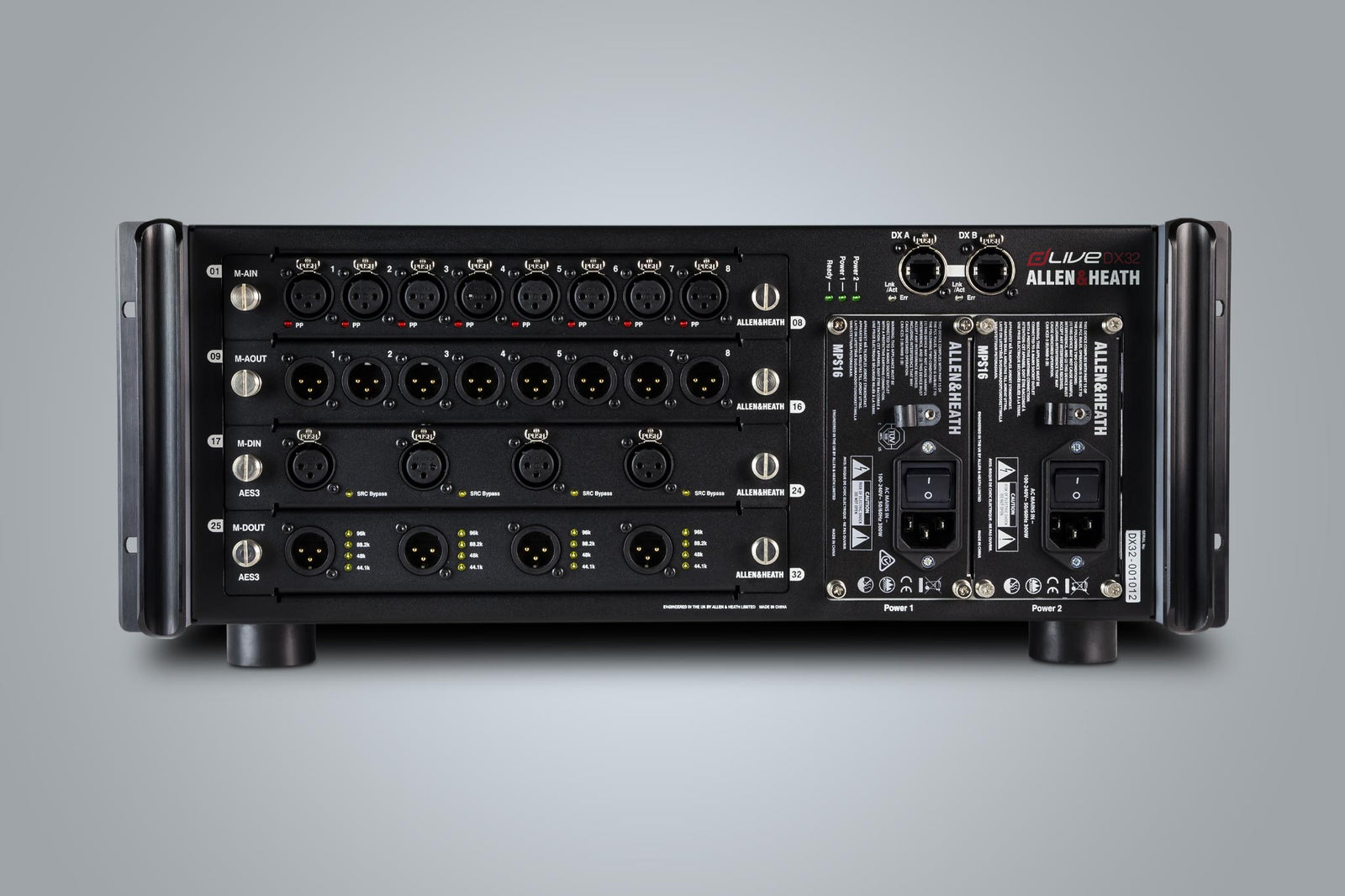

Allen & Heath DX32 96kHz Modular Expander

Allen & Heath DX32 96kHz Modular Expander

SKUAH-DLIVE-DX32 UPC6938122243996

$3,999.00 USD
$3,999.00 USD $3,999.00 USD
Sale Sold out

DX32

96kHz Modular Expander

The DX32 Expander adds remote, modular I/O to a dLive, AHM, Avantis or SQ system. It provides 4x 8 channel slots to fit a selection of analogue or digital I/O.

Configurable I/O

Mix and match I/O cards to meet your requirements.

Redundancy

Redundant connection and power options for critical applications.

PRIME Ready

DX32 supports our next-generation PRIME I/O modules.

Plug-and-Play

No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.



DX32

Build Your Own I/O

The modular design of the DX32 allows you to build your own expander with the I/O you need. Each of the 4 slots can hold an 8 channel input or output card with both analogue and AES digital options.

Maximum Flexibility

Put It Where You Need It

The DX32 can be placed up to 100m away from the mixer for maximum flexibility of positioning, and includes rack ears for mounting in a 4U 19″ rack space.

The expander connects via a single Cat5e cable to the mixer via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware.

Peace of Mind

Built In Redundancy

The DX32 supports dual-cable connection to compatible mixers as well as DX Link and DX Hub.

The second PSU port can be fitted with a redundant PSU, and power supplies are hot-swappable so you never need to power down.



View full details
