Powered by the Allen & Heath Custom Control app, CC-7 and CC-10 are control touch panels for desktop or wall mount use. They can operate as fixed control devices or complementing a BYOD solution. From simple music source selection to level control, preset recall or paging, they offer an alternative to our range of IP remote controllers for applications where a touchscreen interface is preferred.
The CC-7 features a 7″ 1024×600 touchscreen and the CC-10 offers a 10″ 1280×800 touchscreen.
CC-7 and CC-10 have threaded inserts for standard VESA 75x75mm mounting, and optional desktop stand and wall/glass mount brackets are available.
Both models can be powered via a 12V DC PSU or via PoE for a neater install.
Running Custom Control in kiosk mode, the app prevents unauthorised operation, securing the settings of the panel. The installer, integrator or system admin can exit the app to change the touch panel settings such as IP address or brightness, or to update the software.

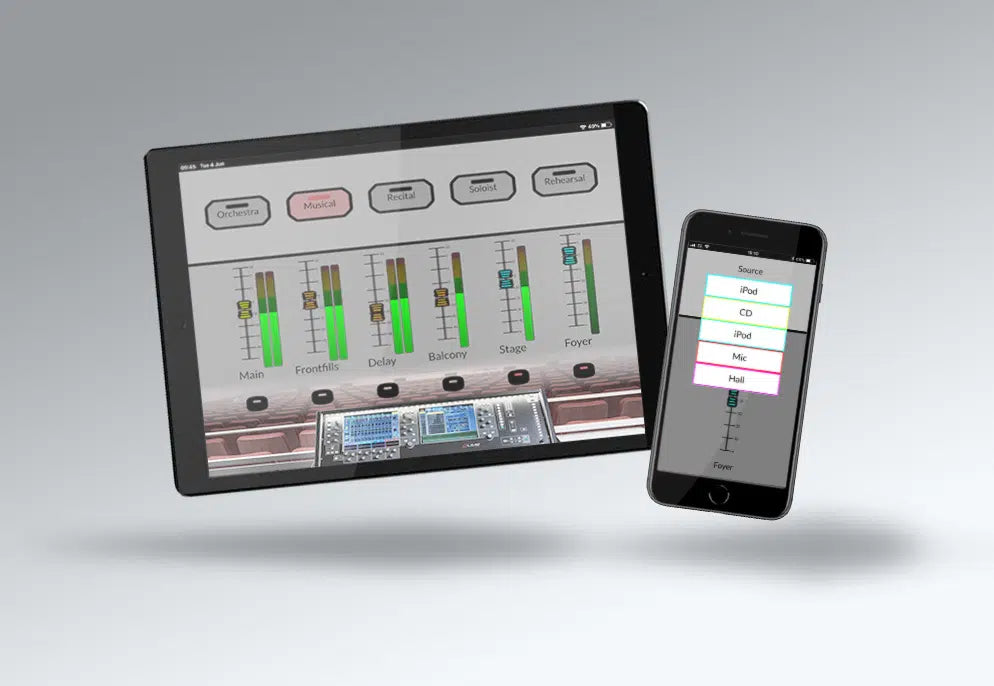

Multiple User Interfaces
The integrator can freely design multiple user interfaces, tailored to different user levels and/or device types. For example, a bartender can be presented with a simple phone interface, while the AV operator can access uncluttered levels and routing on their tablet, but more comprehensive control when using their laptop.
