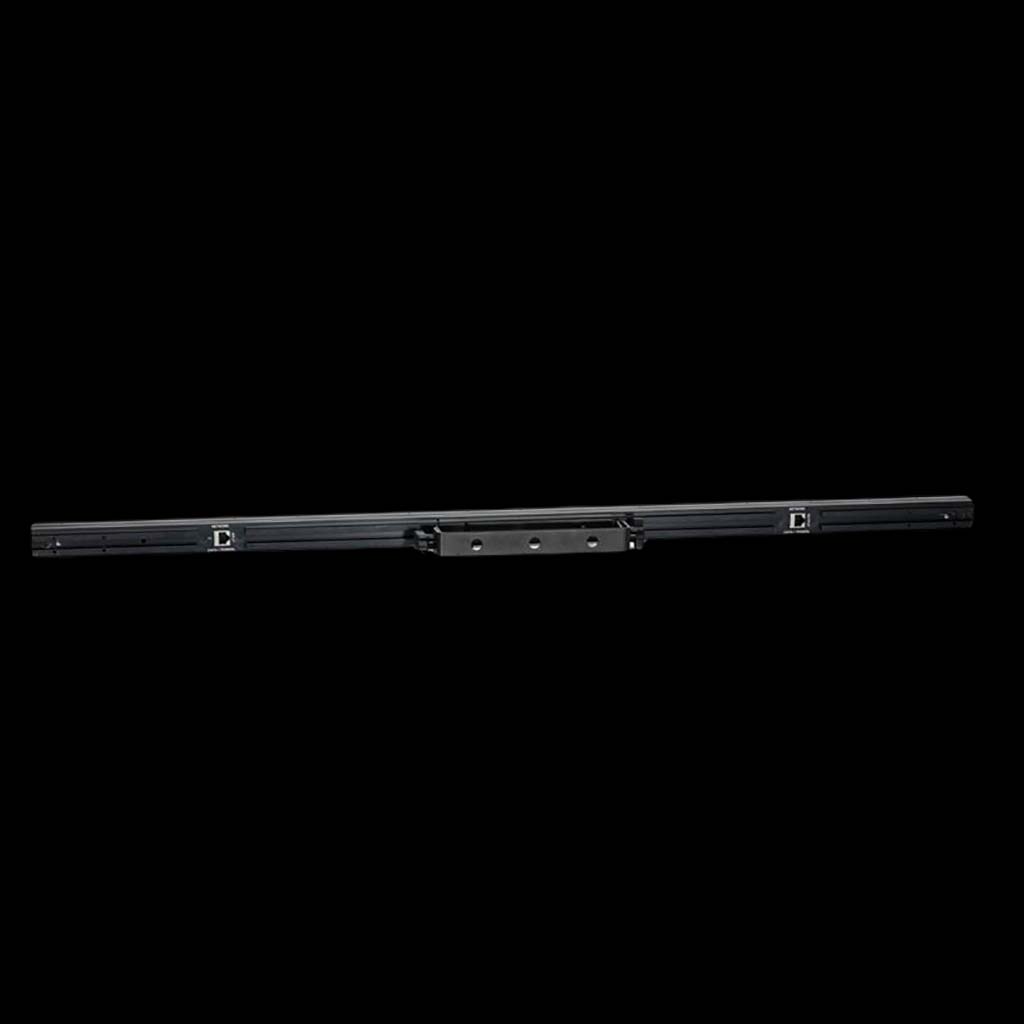

LED Pixel Strip IP (Package)

Our LED Pixel Strip IP is a pixel mapping, one-meter strip that sets up in minutes with minimal technical know-how. Each strip houses 40/80 tri-colored SMD 5050 LEDs, and has a pixel pitch of 25/12.5 millimeters and 120-degree viewing angle. With multiple control options―industry standard Art-Net ―pixel mapping displays are achieved in minutes. Runs both signal and power over a RJ45 cables that provides greater stability and connection in daisy chain (up to 16Pcs Led Pixel-Mapping Strip). IP-65 outdoor rated features also makes this a reliable setup for any type of setting no matter if its indoors or outdoors.

*Package includes 16 units and 1 controller

Light Source:

• LED Power: 40/80 SMD5050 RGB LED’s
• LED Color: RGB
• LED Lifetime: Over 50,000 hours

Power supply:

• Voltage:  110-240V AC, 50/60Hz

Optics:

• Beam Angle: 120º
• Pixel Pitch: 25mm
• Color Synthesis: RGB/Full Color mixing

Features:

• Art-Net, RDM, DMX control protocol supported
• Power & Signal only through “LED Pixel Strip Controller IP”

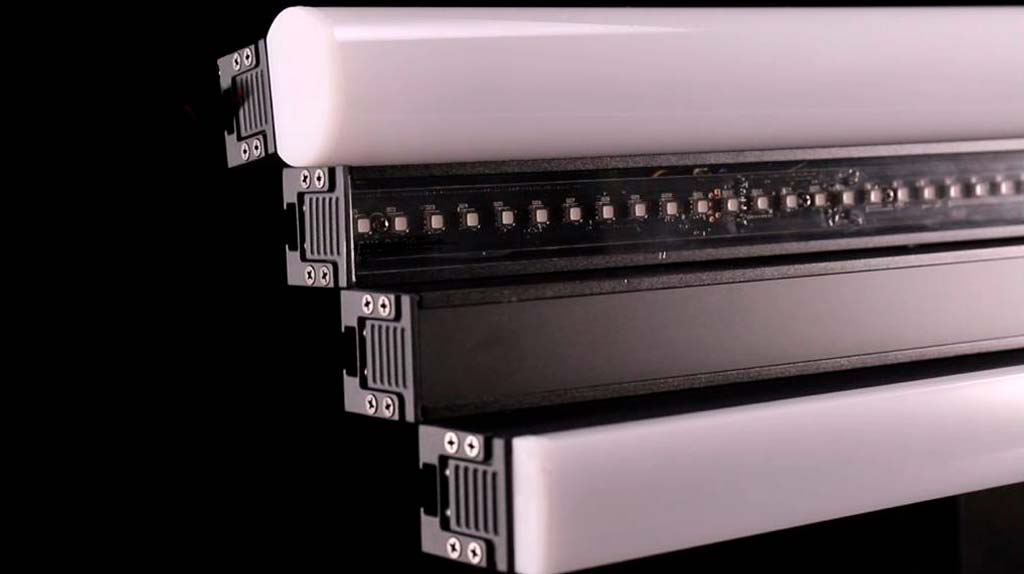

• Cover Options:
  -Milky White Dome Cover
  -Flat Transparent Cover
  -Flat Black Cover
  -Flat Square Milky White Cover
• Mounting Handle can be adjusted and moved
• Covers can be changed at any time
• Unique Lock design with simple and flexible joining
• Channels Art-Net-120
• DMX Channels-8

Control:

• Housing: Sturdy Aluminum Profile
• Outdoor Rated: IP-65
• Power Consumption: 15/25w

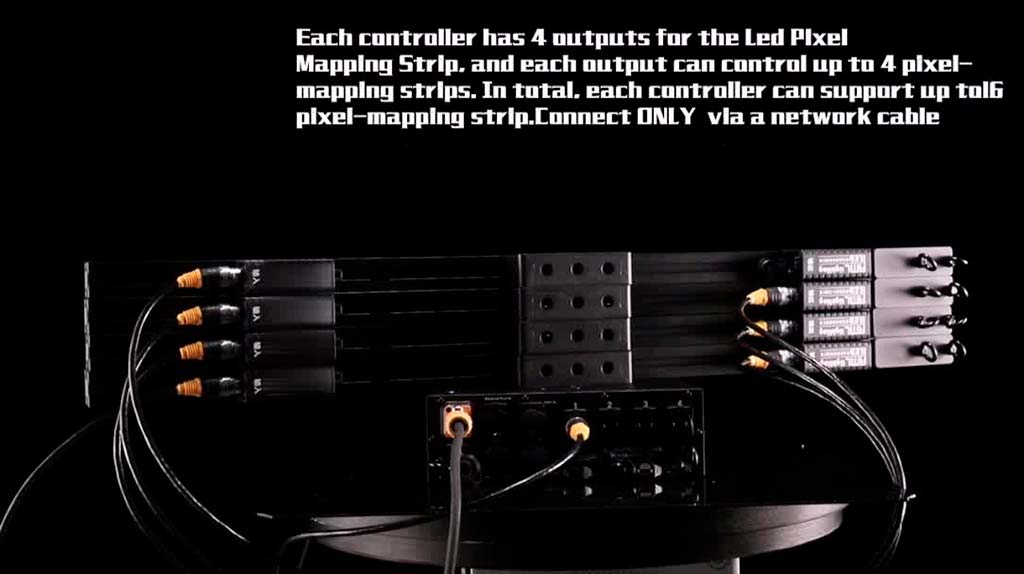

• In/Out power wiring & signal through Power Supply (16 Units Max)

Working Environment:

• IP Grade: IP-65

Package:

• Net Weight: 4.4 lbs /2 kgs
• Dimensions:39.3×1.4×3.7” in / 1,000x35x94 mm
