The 20 amp P-2400 AR delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltage – all of which can cause sensitive electronic equipment to malfunction or sustain damage.

The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With its robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.

Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Linear Filtering Technology (LiFT), but it will also be fully protected by the exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.

Technical Specifications

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 amps

Family: Prestige Series

Line Voltage: 120 (Volts)

Number of Outlets: 14

Number of Isolated Banks: 2

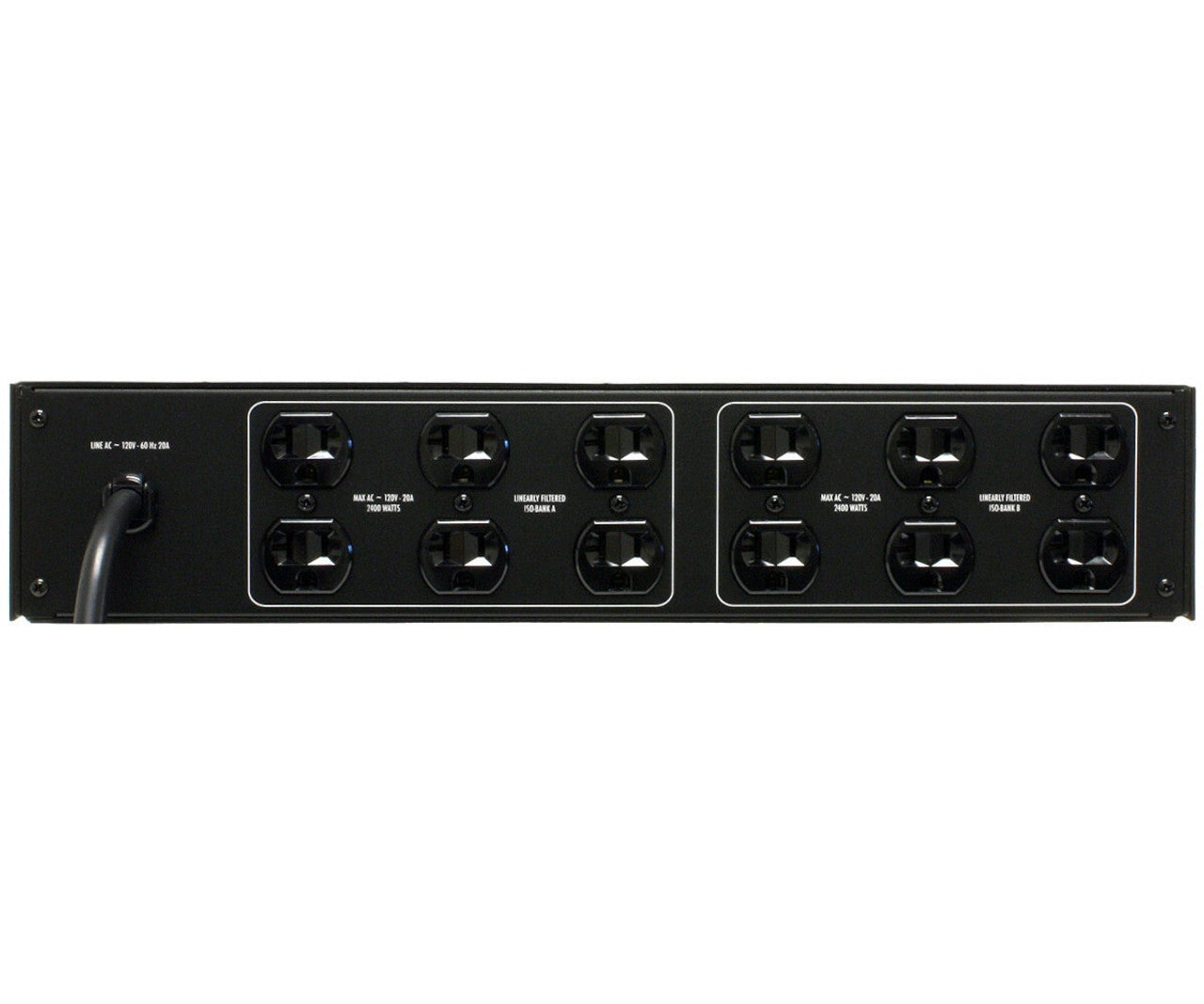

Outlet Descriptions: All 14 outlets regulated and conditioned – 12 on the rear panel and 2 on the front

Rack Mountable: Yes

Rack Ears Included: Yes

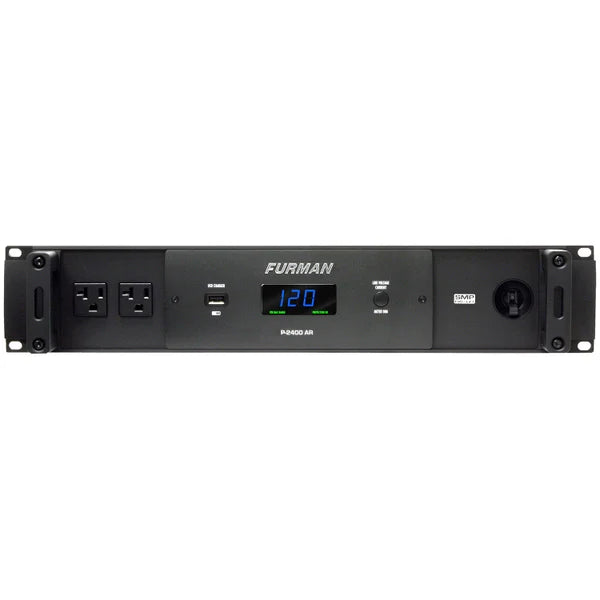

Front Panel Meter(s): LED voltmeter/ammeter displays incoming voltage and input current draw

Front Media Light(s): No

Control: Front panel On/Off switch, Voltage meter dimmer button

Voltage Regulation: Regulation capture range: 97 VAC to 137 VAC

Compliance: cETLus

USB Charging: 1 front panel USB charger

Low Voltage Trigger: N/A

AC Power Cord: 10 ft. captive 3/12 AWG, black cord with NEMA 20 plug

Dimensions: 19" W x 12" D x 3.5" H

Weight: 39 lbs

Power Consumption: 13 Watts

AC Protection Technology: True RMS Voltage Regulation, Extreme Voltage Shutdown, Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 145 VAC

Maximum Current Rating: 20 Amps

Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration Technology: LiFT

Filtration Rating: 10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz

Signal Line Protection: No

UPC: 654061028192
