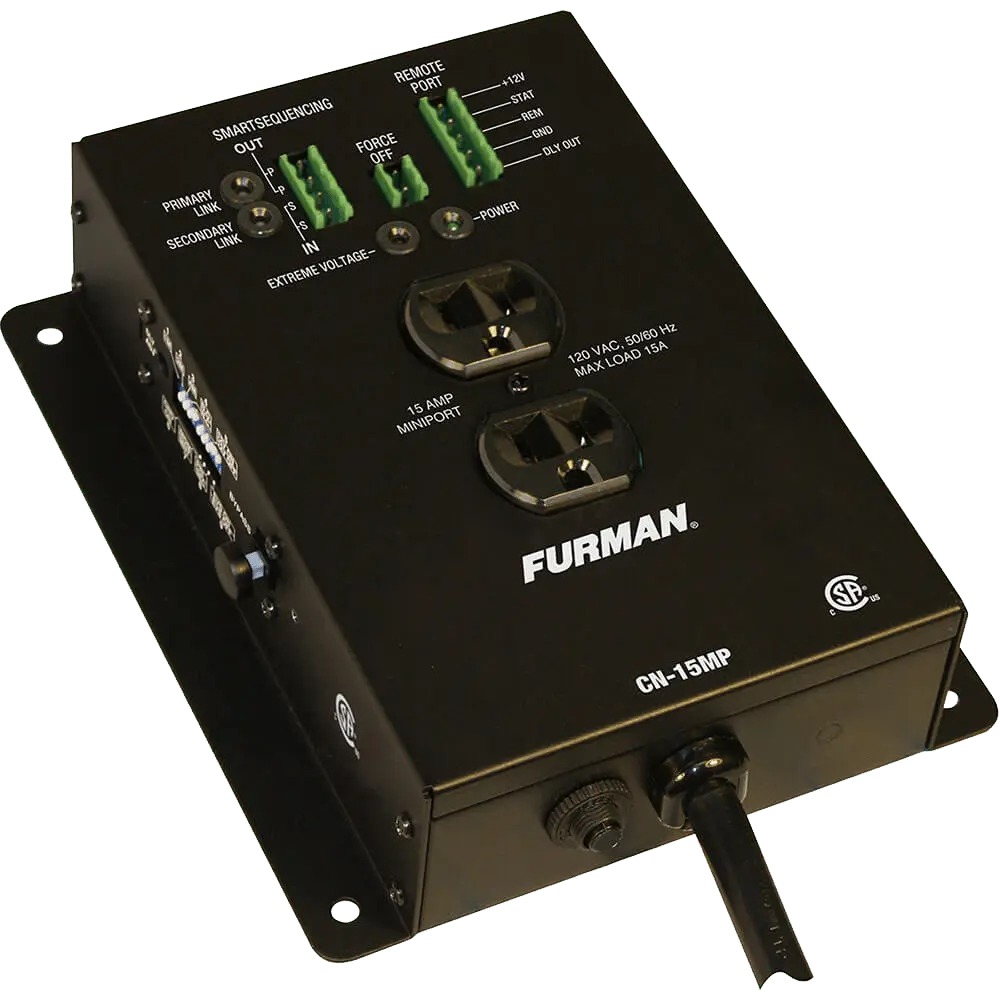

Furman CN-15MP 15A Remote Duplex MiniPort with SmartSequencing
Click to open expanded view

Furman CN-15MP 15A Remote Duplex MiniPort with SmartSequencing

SKU FRM-CN15MP
Barcode 654061028475
Sale price
$359.95
Regular price
$399.95
You save
10%
Furman CN-15MP 15A Remote Duplex MiniPort with SmartSequencing

Furman CN-15MP 15A Remote Duplex MiniPort with SmartSequencing

$359.95
$399.95

Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, and/or control and automation systems.

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.

Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or digital link (SmartSequencing from CN-1800S or CN-2400S).

The CN-15MP can shut itself off automatically when triggered by a fire alarm.

Technical Specifications

Family: Contractor Series

Line Voltage: 120 Volts

AC Voltage Input Range: 90-139VAC, 50/60Hz

Maximum AC Current Rating: 15 amps (Thermal breaker)

AC Cord: 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug

AC Receptacles: 2 NEMA 5-15R’s (1 duplex)

AC Undervoltage Protection: EVS, 77VAC+/-3VAC

AC Overvoltage Protection: EVS, 140VAC+/-5VAC

AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)

Operating Temperature Range: 5°C (40°F) to 40°C (105°F)

Humidity Range: <90% Relative Humidity

Circuit Breaker: Pushbutton, 15A

Front Panel Diagnostic Indicators (LED): Power, Extreme Voltage, Primary Link, Secondary Link

Side Panel DIP Switch Features: 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual

Side Panel Potentiometer: Allows fine-tune delay adjustments

Remote Terminal: +5-30VDC In, 12VDC (12mA) Out

SmartSequencing: Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)

Remote Terminal: Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring)

Force Off: Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)

RS-232 Compatible: Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port

Voltmeter: Available with SmartSequencing, ±2VAC accuracy

Ammeter: Available with SmartSequencing, ±1A accuracy

Power Consumption (No Load): 10 Watts

Safety Agency: CSA, RoHS Compliant

UPC: 654061028475
